Babbitt White Metal Bearing | Turbine Bearing Repair of 120 MW

Turbine Journal Bearing Manufacturer

RA Power Solutions undertakes Rebabbitting of Babbitt white metal bearings for last more than 41 years of thrust, crankpin, and main journal, turbine, rotor, and alternator bearings for all applications up to 1500 mm diameter.

At RA Power Solutions, we take pride in our expertise as a turbine journal bearing manufacturer and our ability to provide exceptional repair services for Babbitt white metal bearings.

In this blog post, we highlight our recent accomplishment in Nigeria, where we successfully repaired a 120 MW turbine bearing. Our team of highly skilled technicians and advanced facilities enabled us to overcome the challenges and restore the bearing’s functionality efficiently.

Read on to learn more about our expertise as a turbine journal bearing manufacturer, turbine bearing repair of 120 MW, and how we handled this complex repair project.

OUR EXPERIENCE IN REBABBITTING OF WHITE METAL BEARING:-

  • Extending the services of Rebabbitting and repair of white metal bearings all over the world for more than 41 years.
  • The Rebabbitting of Babbitt white metal bearings up to 1500 mm is executed strictly by centrifugal process ensuring strong bonding between the Babbitt white metal and steel base of the bearing.
  • In-house machining facilities with an accuracy of 10-20 microns are achieved.
  • Regularly undertaking Rebabbitting assignments of prestigious organizations from the field of nuclear power stations, high-capacity turbines and generators, and main and auxiliary engines.
  • Facilities for metallurgical analysis of Babbitt white metal and expert recommendation for enhancing the quality of Babbitt white metal for an increase in service life.
  • All bearings are subject to strict quality control norms by experienced technicians for hardness tests, crack checks by MPI, dimensional checks, and ultrasound for bonding.

REPAIR OF 120 MW TURBINE BEARING UNDERTAKEN FOR A LEADING NIGERIAN STEEL COMPANY:-

We were approached by a leading steel company based in Nigeria to undertake the Rebabbitting of a white metal turbine bearing having a capacity of 120 MW. They have been getting previously the repairs done by a company based in Europe which failed in a short duration of operation, never gave satisfactory performance, and charged exorbitantly.

RA Power Solutions undertook the successful repair of rebabbitting of the 120 MW turbine bearing.

THE DETAILED MAIN DIMENSIONS OF THE TURBINE BEARING ARE MENTIONED BELOW:

S. NODimensions of Turbine Bearing
1Nominal Bore315 mm
2Width of Bearing257 mm
3OD of Bearing445 mm
4Height of bearing 260 mm
5Finishing bore diameter315.42+0.02-0.00mm
6Weight150 kg

ON RECEIPT OF BEARING FROM NIGERIA IT WAS THOROUGHLY INSPECTED FOR THE FOLLOWING:-

  • The old white Babbitt metal was removed under a controlled temperature.
  • Shot blasting of the bearing shell was undertaken.
  • The hardness of the inner diameter was checked.
  • Crack detection by MPI and dye-penetration test was undertaken of bearing steel casing.
  • A crack detection test by ultrasound method was done before and after Rebabbitting.
  • Ultrasound was again done to check the bonding of Babbitt white metal with steel casing.
  • Assistance was provided in the transportation of heavy bearings to our works for white metal rebabbitting from other countries.
  • We provide complete assistance in the export of damaged bearings and return of bearings to the end-user after turbine bearing repair.
  • We have a definite advantage of our location as we are only 30 30-minute drive from New Delhi International Airport.
  • Our plant is also close to the dry port of New Delhi, in case our client wants to dispatch the bearing by sea.

EMERGENCY SERVICES WERE EXTENDED FOR THE REPAIR OF THE WHITE METAL BEARING.

We are geared up to extend 24/7 white metal Rebabbitting services and can assure the fastest delivery possible. We are also respected and known for the reasonable pricing.

Damage bearing of 120 MW turbine for white metal rebabbitting
Damage Bearing of 120 MW Turbine For White Metal Rebabbitting
Turbine bearing before rebabbitting of white metal
Turbine Bearing Before Rebabbitting of White Metal

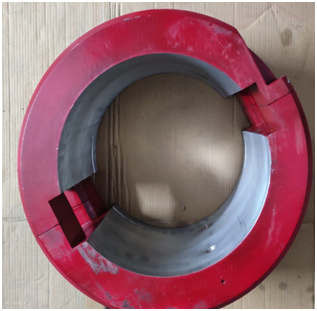

Turbine bearing after white metal rebabbitting
Turbine bearing After White Metal Rebabbitting
Turbine bearing 120 MW after babbitt white metal repair
Turbine bearing 120 MW After Babbitt White Metal Repair
Babbitt white metal bearing repair
Babbitt White Metal Bearing Repair
Babbitt white metal bearing after rebabbitting
Babbitt White Metal Bearing After Rebabbitting

As a trusted turbine journal bearing manufacturer, our successful repair of the 120 MW turbine bearing in Nigeria exemplifies our commitment to providing reliable and efficient solutions for complex bearing repair projects.

With our expertise, advanced technology, and dedication to quality, we continue to support the power generation industry by delivering exceptional repair services for Babbitt white metal bearings. Contact us today to discuss your turbine bearing requirements and experience the excellence of our manufacturing and repair services.

We have been regularly undertaking Rebabbitting of white metal bearings for reputed steel, fertilizer, and shipping companies based in countries like Austria, Belgium, Denmark, Finland, France, Germany, Greece, Ireland, Italy, Luxembourg, Netherlands, Portugal, Spain, Sweden and United Kingdom, Nigeria, Srilanka, etc.

This blog is written by Mr. Raj Shahani (Managing Director of RA Power Solutions India Pvt. Ltd.).

He is a highly experienced business leader with rich experience of more than 40 years in the field of Power, Heavy, and Shipping industry. He is a Technical Adviser to many shipping and heavy industries across the globe.

Mr. Shahani is one of the most enthusiastic professionals and he has all the brilliance of an exemplary leader. He is an extremely effective coach and mentor of teams and is adept at providing leadership in a global, cross-cultural environment.

For more information on babbitt bearing and turbine journal bearing manufacturers,  please email us at rajshahani@rapowersolutions.com, or info@rapowersolutions.com, or call us at +91 9582647131 or +91 9810012383.
